With your External Layer3 fabric created for your ISN, you can import your core router device for management by Nexus Dashboard. Because it is a Nexus 9000 series device, it can be fully managed by Nexus Dashboard.

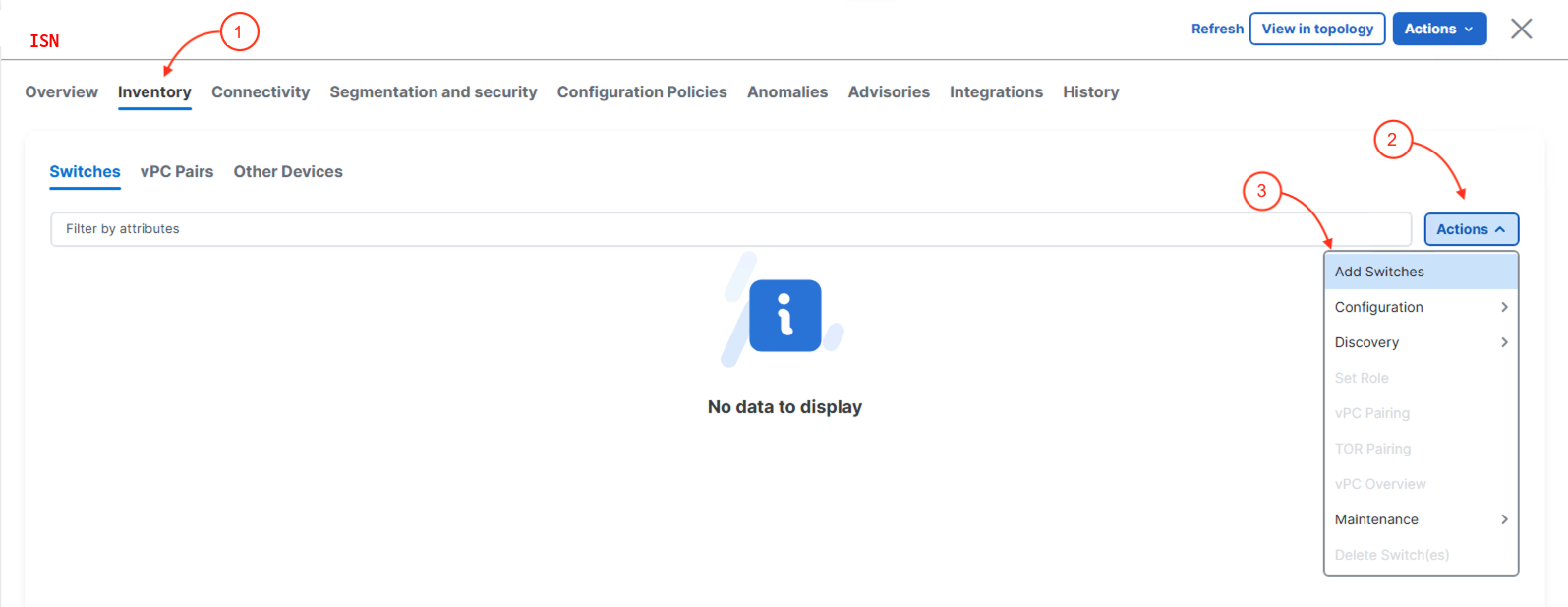

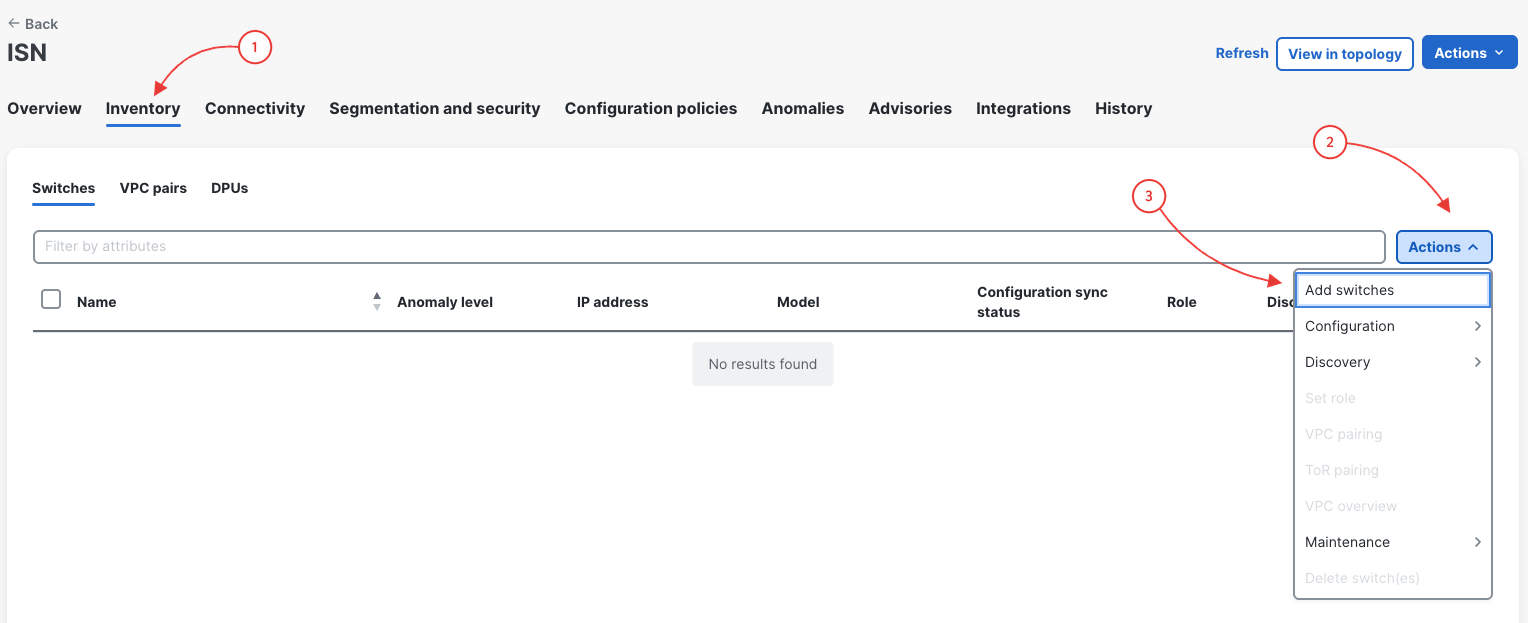

Step 1 - Add Switches to the Fabric

Your Switches table is empty at the moment. To populate it with the switches in your Site1 fabric:

1. Click Inventory in the top navigation bar
2. Click Actions
3. Click Add Switches in the dropdown

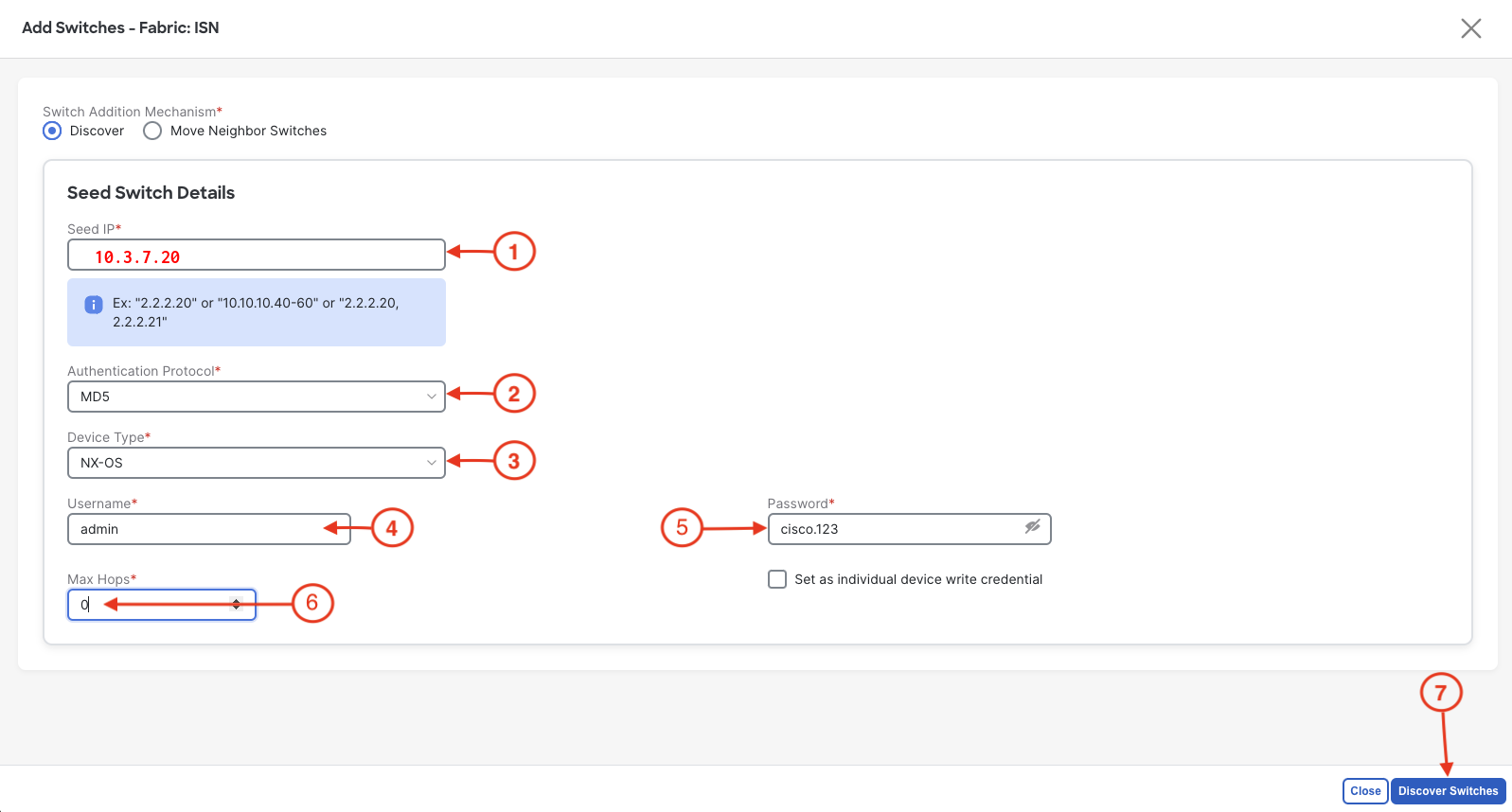

Step 2 - Populate Seed Switch Details

The Add Switches Wizard needs some information to automaticaly be able to discover and add your external device for management by Nexus Dashboard.

1. Set the Seed IP to 10.3.7.20
2. Leave the Authentication Protocol set to MD5
3. Leave the Device Type set to NX-OS
4. Set the Username to admin
5. Set the Password to cisco.123
6. Set Max Hops to 0
7. Click Discover Switches in the bottom right

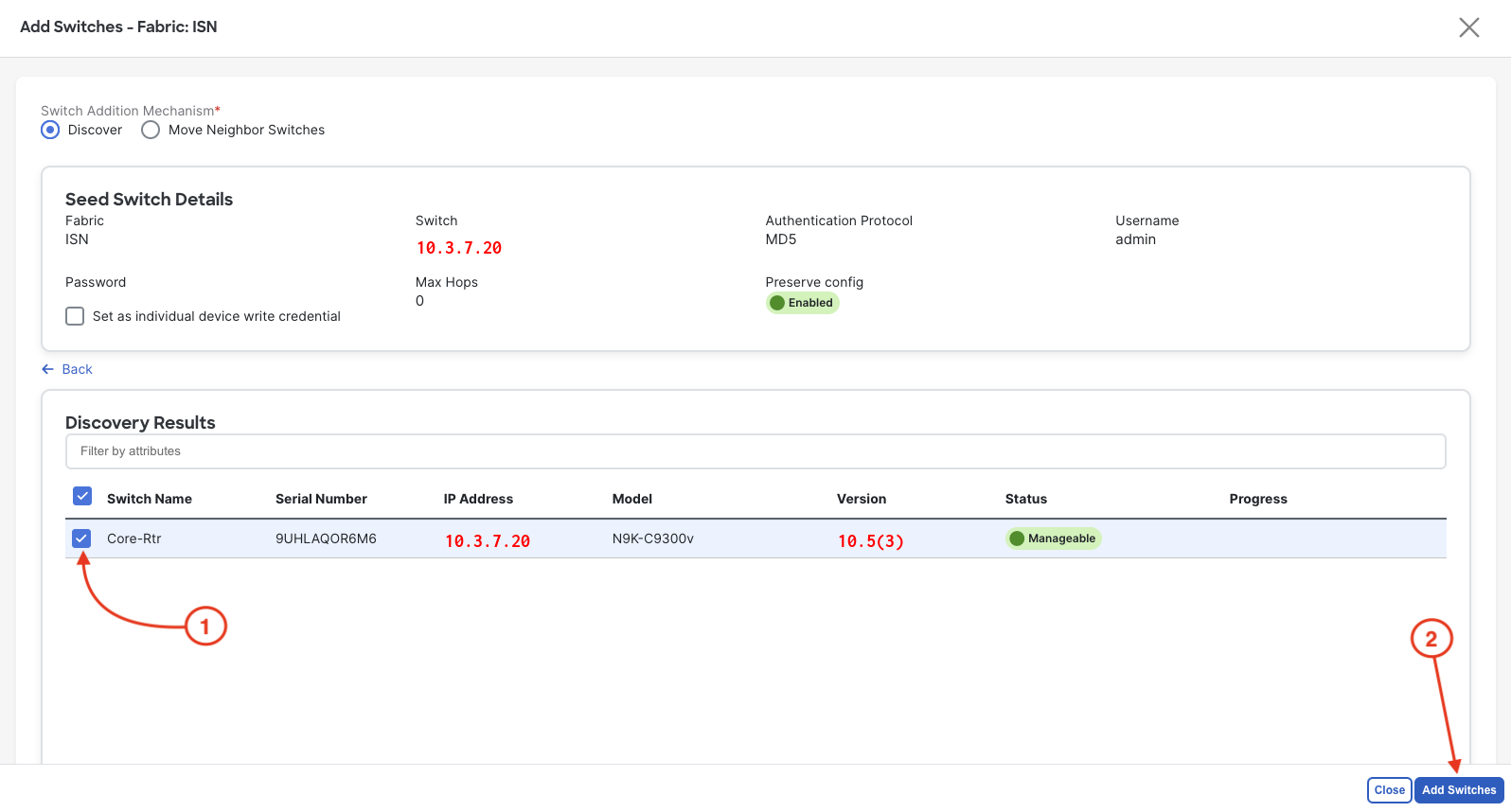

Step 3 - Add Switches

Only one device is expected to be discovered for your ISN fabric in this lab; a device with the hostname Core-Rtr.

1. Click the checkbox beside the Switch Name column heading to select all
2. Click Add Switches in the bottom right

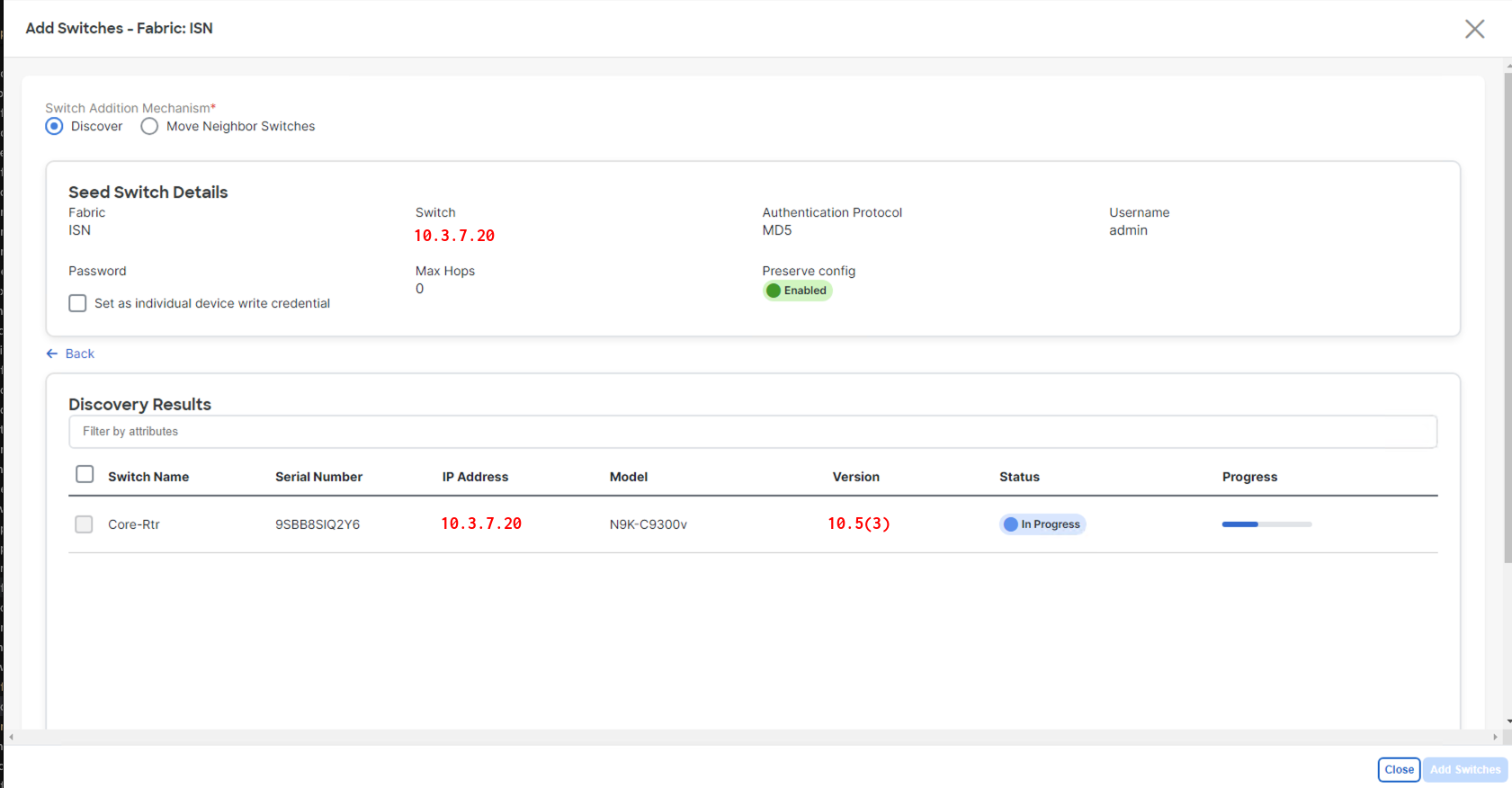

The import progress will start:

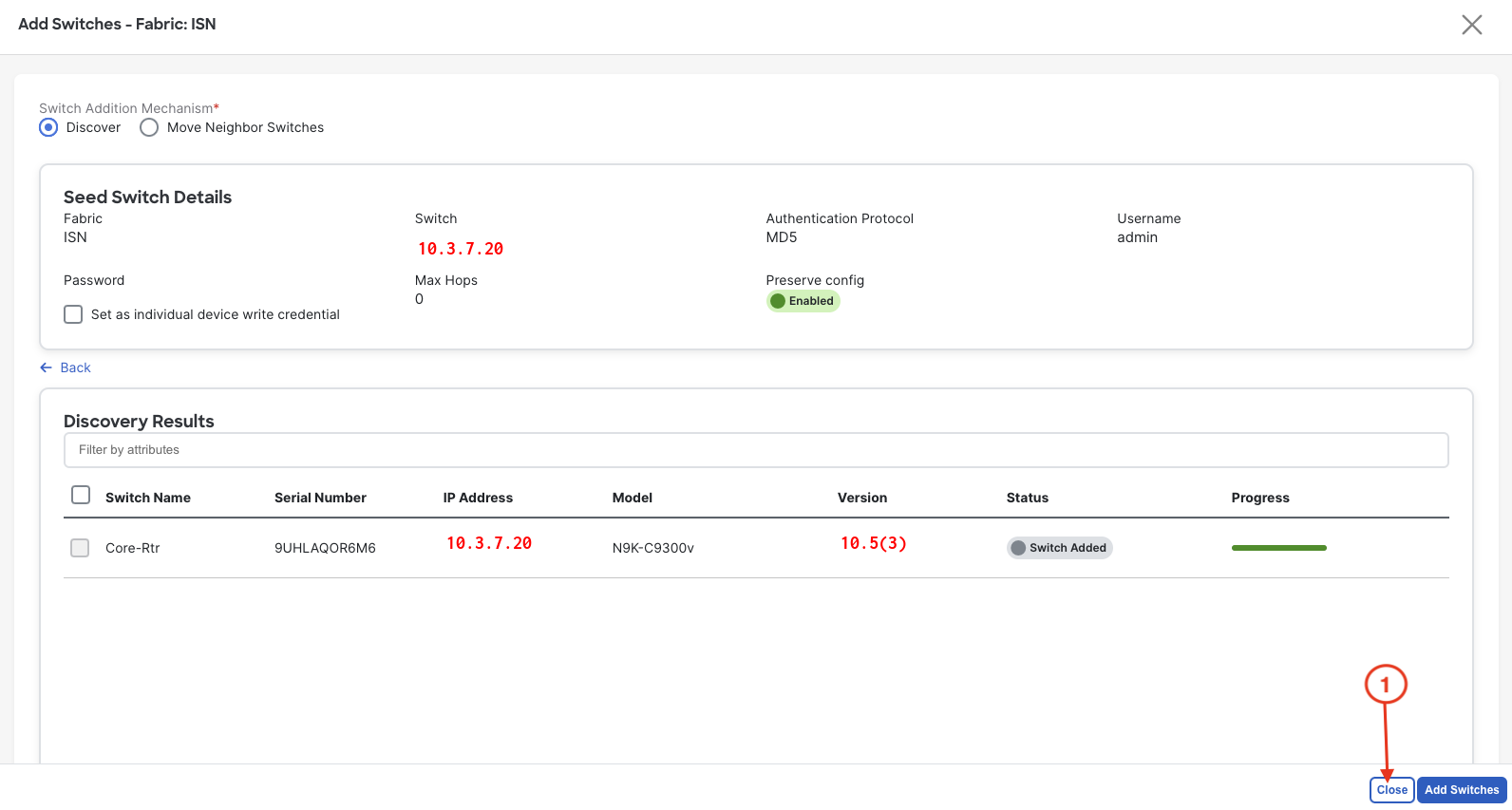

Step 4 - Confirm Switches Added & Exit Add Switches Wizard

The import process should be successful and the Status show Switch Added. The Progress column should show the progress bar as fully green, i.e. progress complete and successful. If you see anything different than the screenshot below, plesae notify a lab instructor.

1. Once the switch shows added, click the Close button in the bottom right

Step 5 - Review ISN Router

Upon exiting the Add Switches wizard, you will be redirected back the Switches overview. Click on the just imported router Core-Rtr to see the details.

Continue to the next section to set the appropriate switch role for your core router in your ISN fabric.
