Step 1 - Login to Nexus Dashboard nd22-2

Launch a new browser instance or tab to access the Nexus Dashboard for cluster nd22-2.

• ND URL: https://nd22-2.ecatsrtpdmz.cisco.com

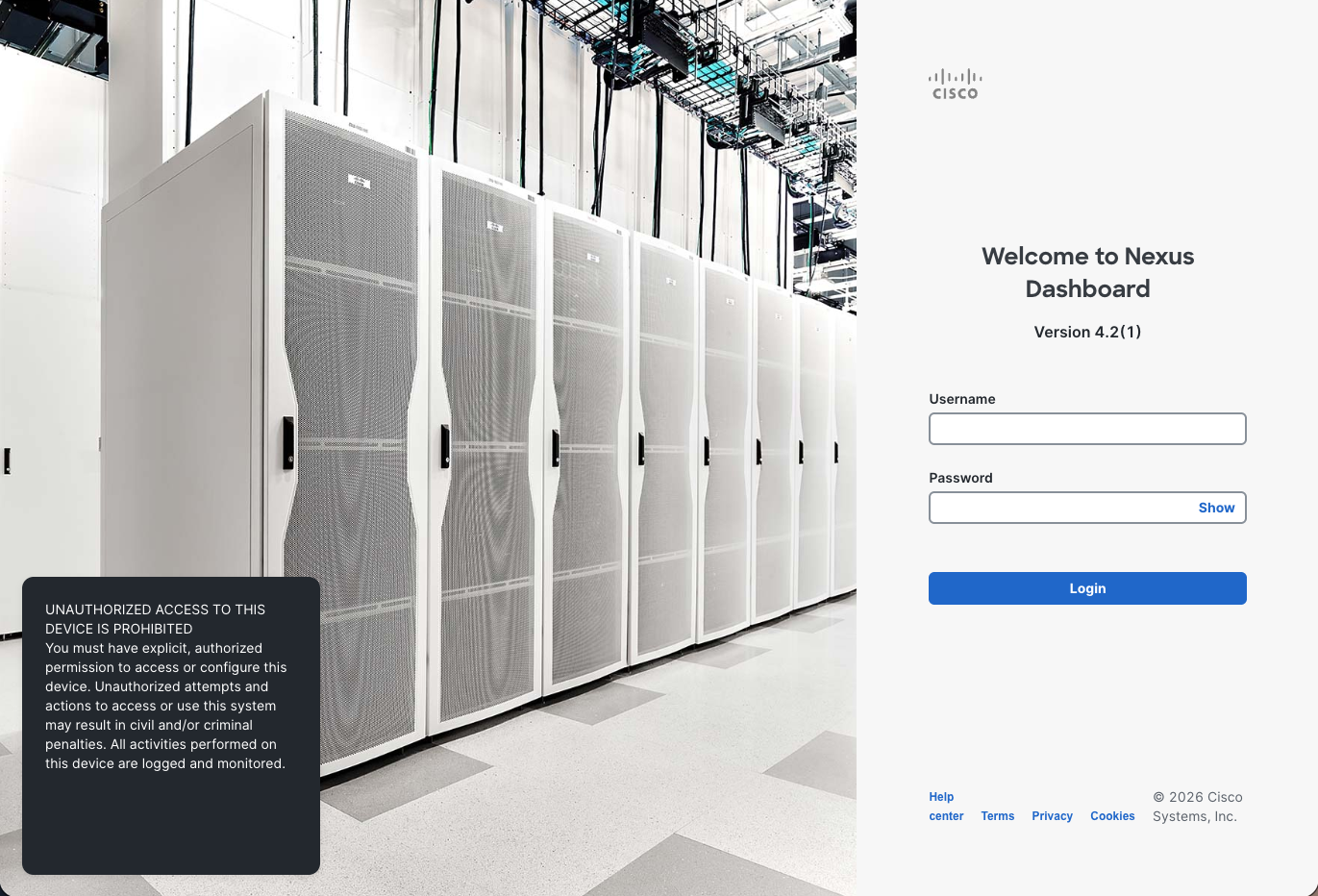

At the login screen, enter the following credentials to authenticate:

• Username: admin
• Password: cisco.123

Step 2 - RBAC Configuration - nd22-2

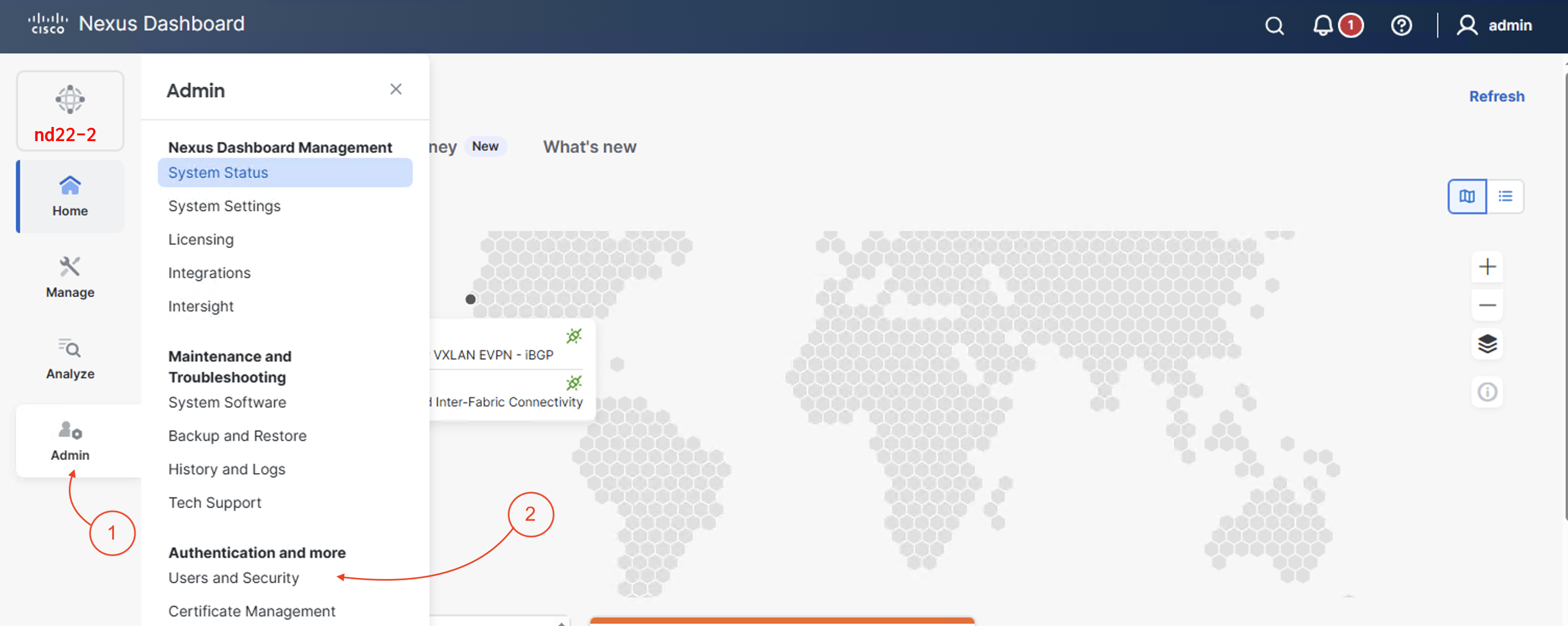

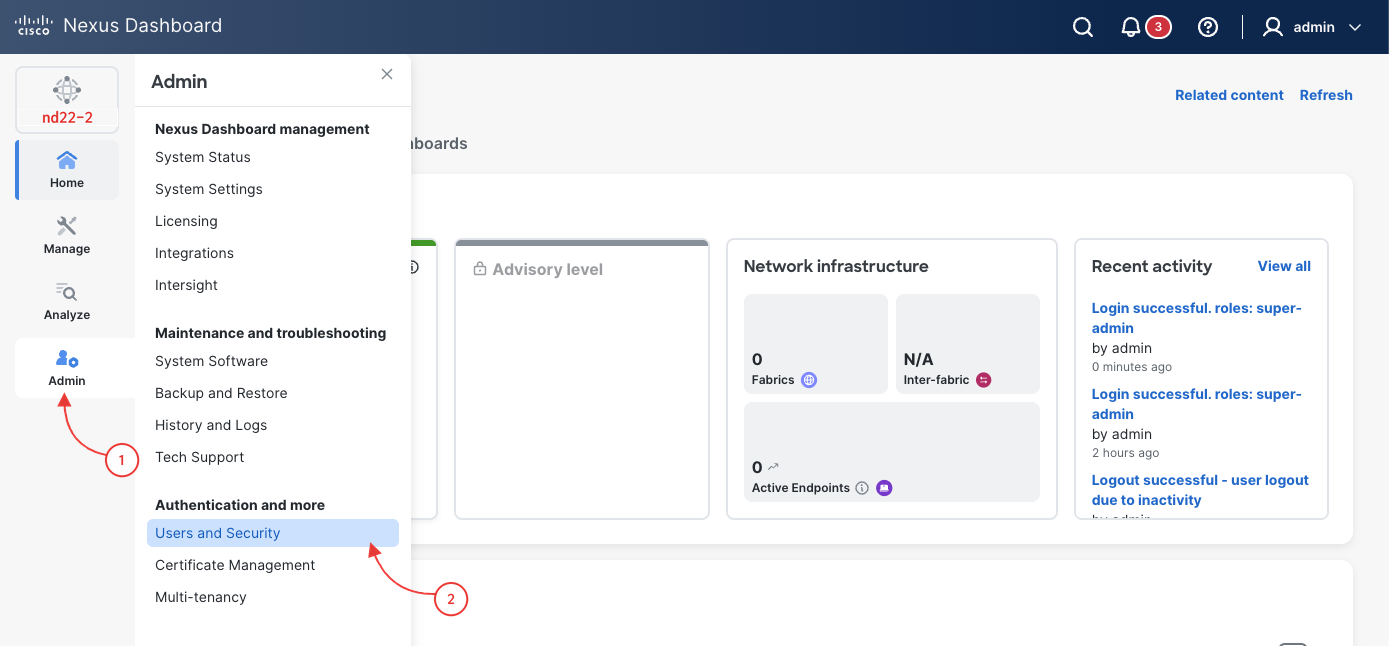

1. Click Admin in the left navigation bar
2. Click Users and Security

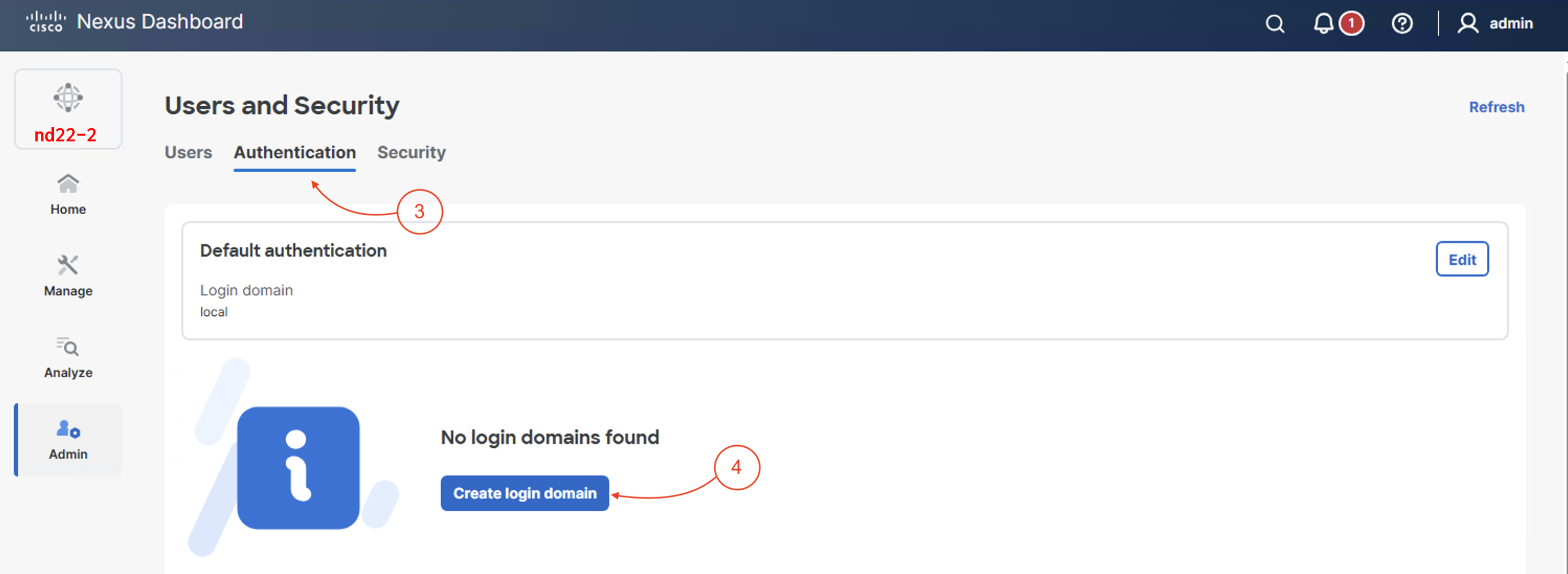

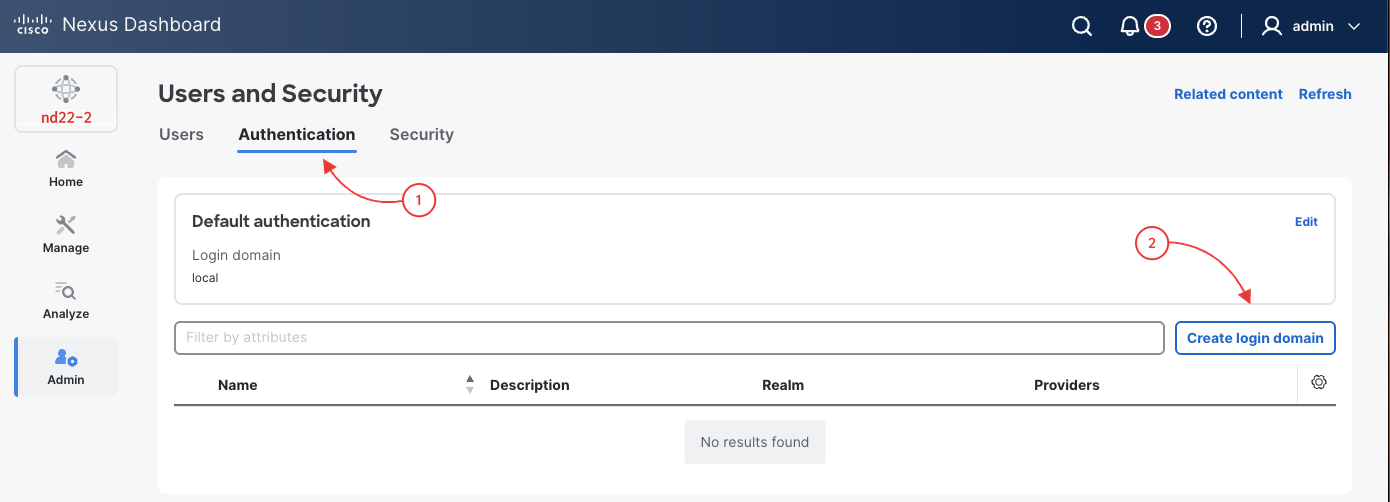

3. Click Authentication

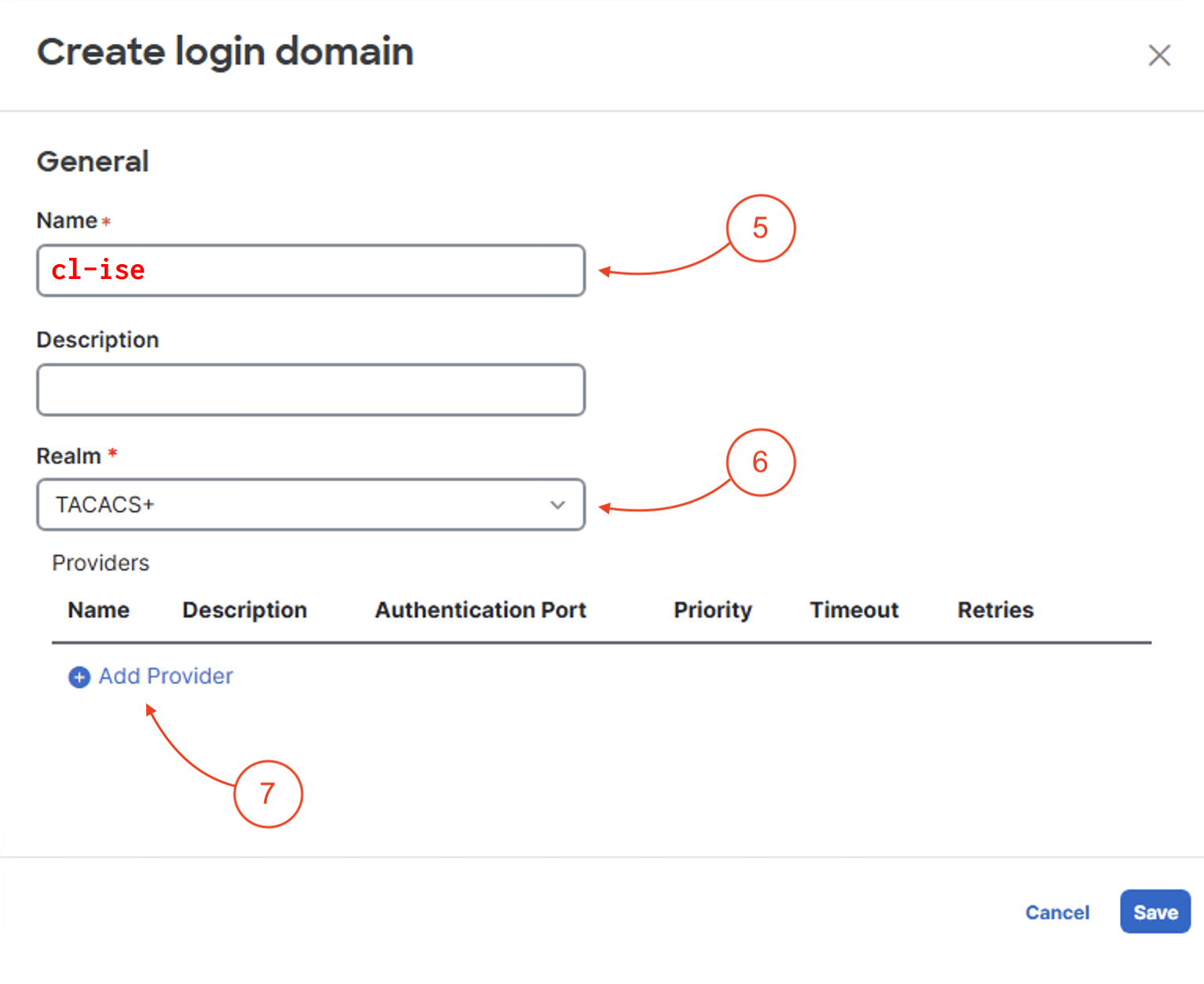

4. Click Create login domain







5. Name: cl-ise
6. Realm: Select TACACS+

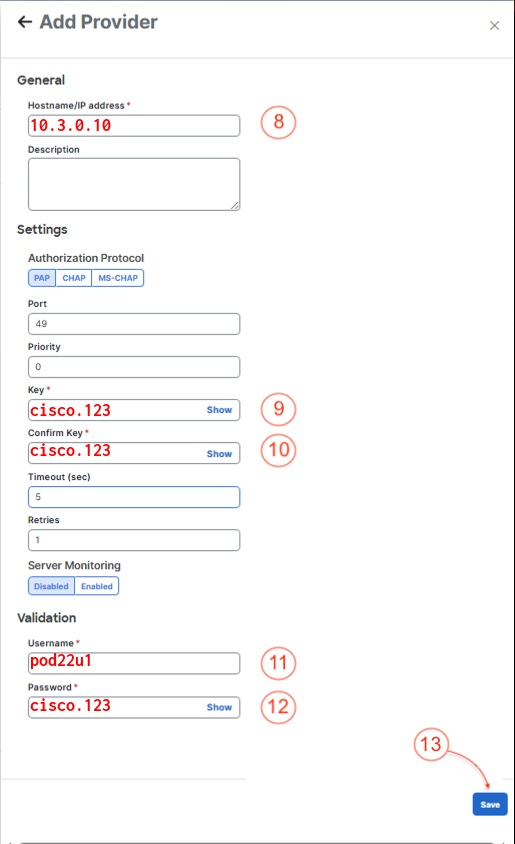

7. Click Add Provider







8. Hostname/IP address: 10.3.0.10
9. Key: cisco.123
10. Confirm Key: cisco.123
11. Username: pod22u1
12. Password: cisco.123
13. Click Save







14. Click Save

Step 3 - Setup Default Login Domain Authentication - nd22-2

To streamline future logins, configure the default login domain authentication to cl-ise, the TACACS+ login domain established previously.

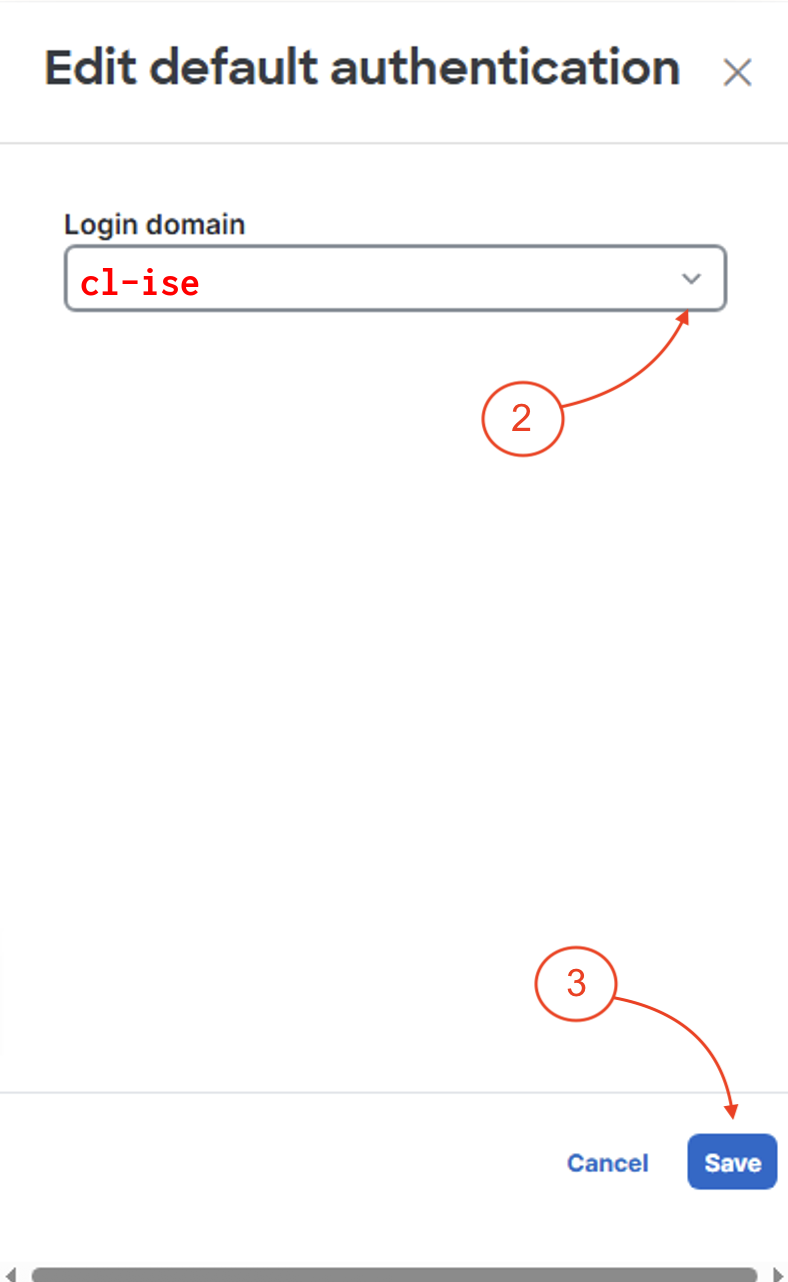

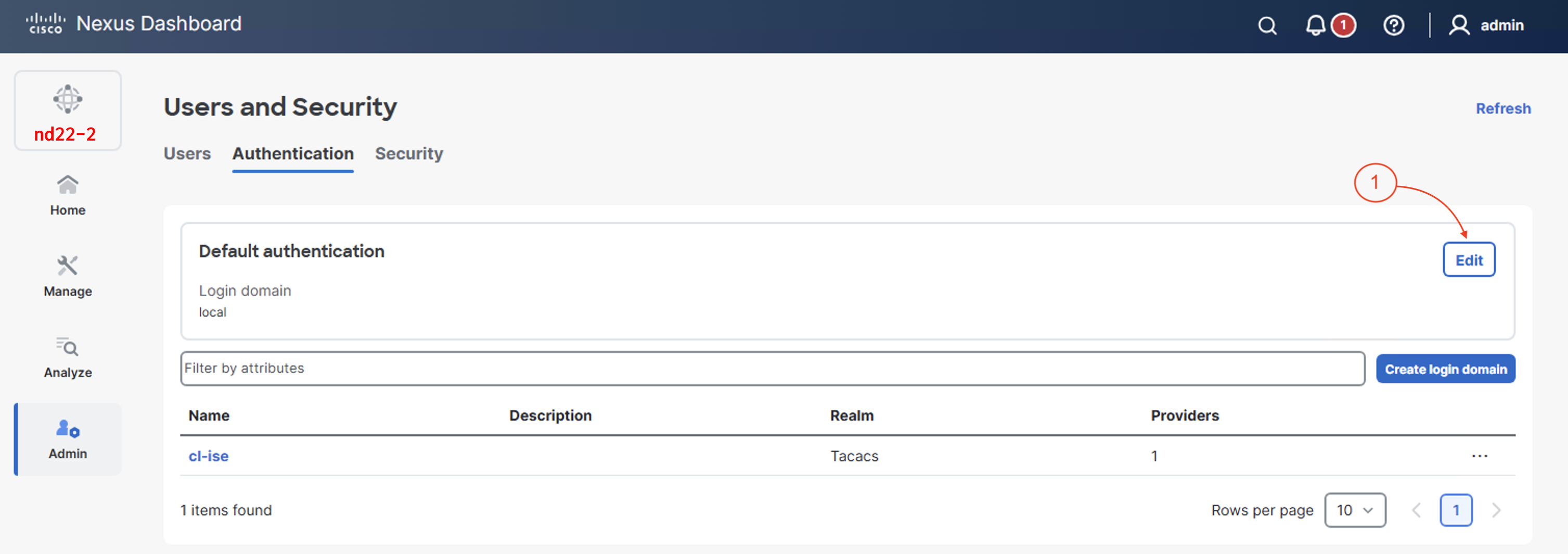

1. Click: Edit



2. Select: cl-ise
3. Click: Save

Upon saving, the Nexus Dashboard will return to the Users and Security page, displaying the updated default authentication method.

Step 4 - Verify RBAC - nd22-2

After configuring RBAC services for nd22-2, verify functionality by logging out and back in with the appropriate credentials.

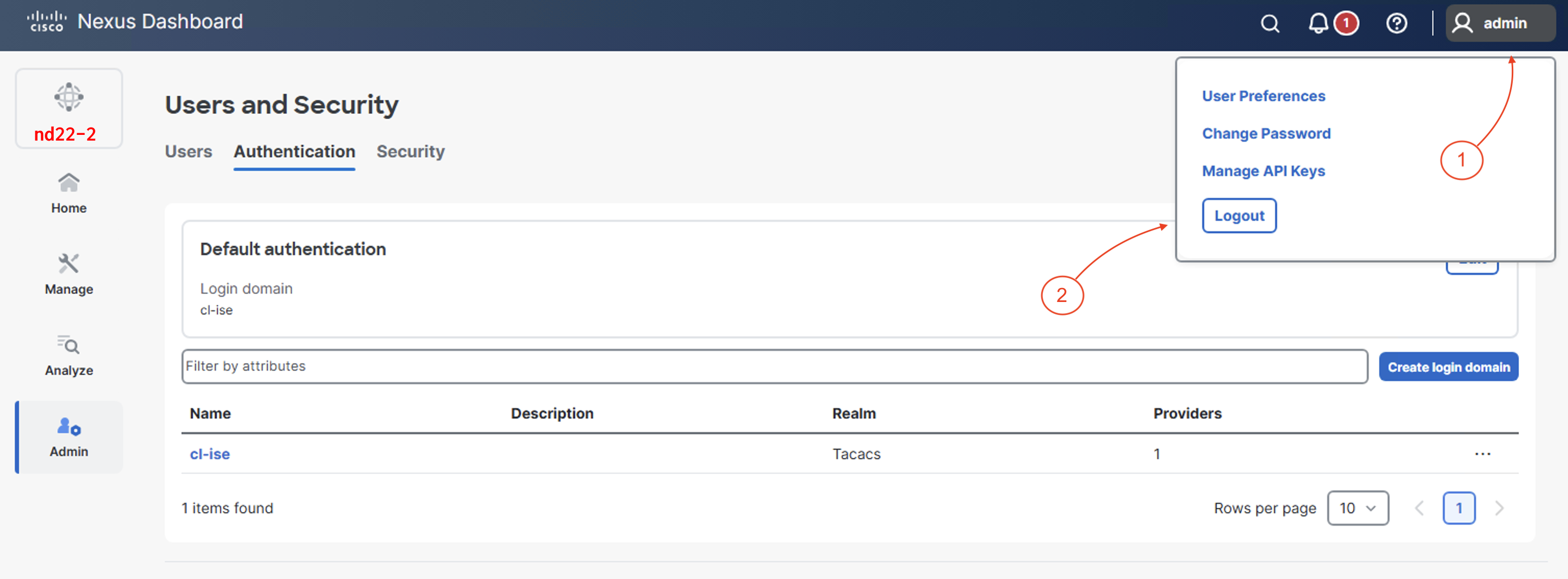

1. Click Admin in the top right corner of the page
2. Click Logout

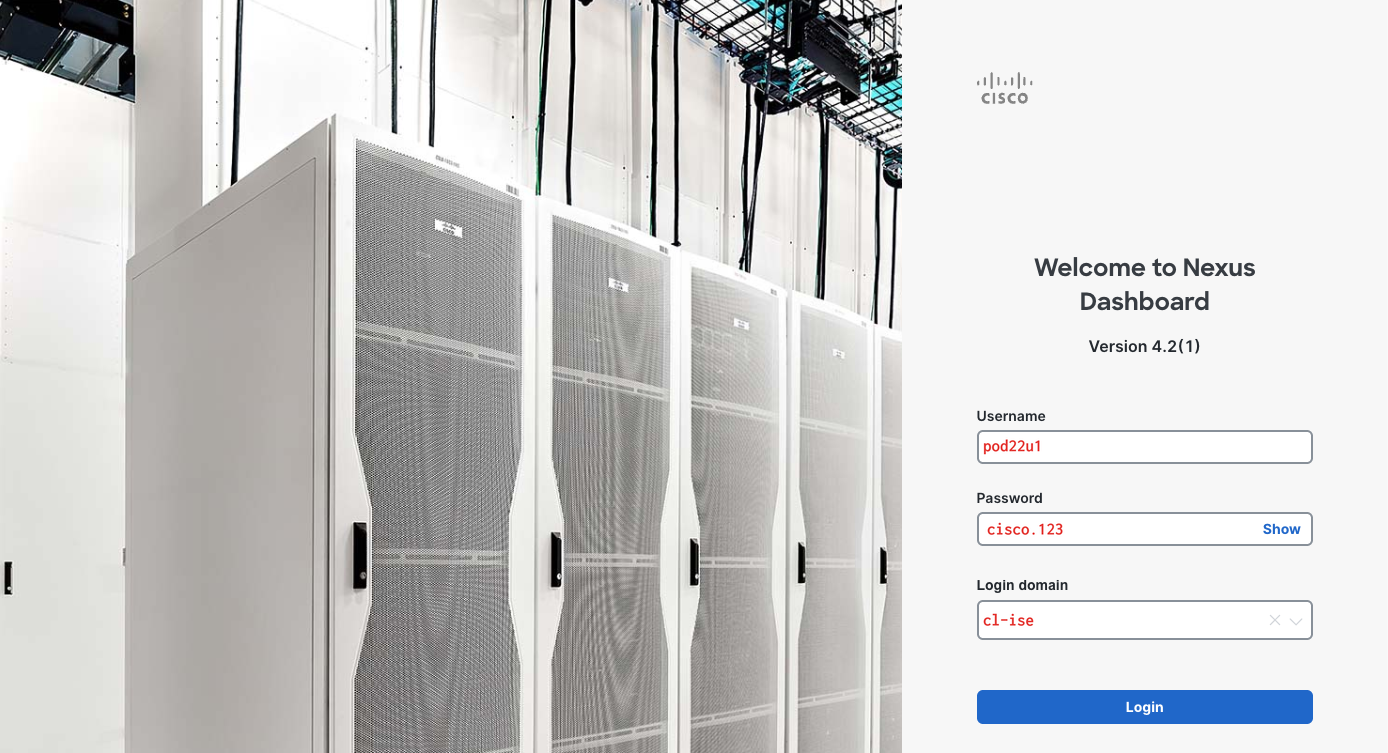

3. User Name: pod22u1
4. Password: cisco.123
5. Login Domain cl-ise
6. Click Login

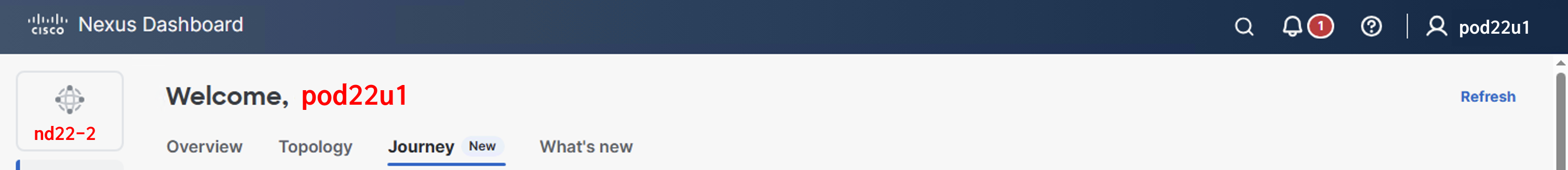

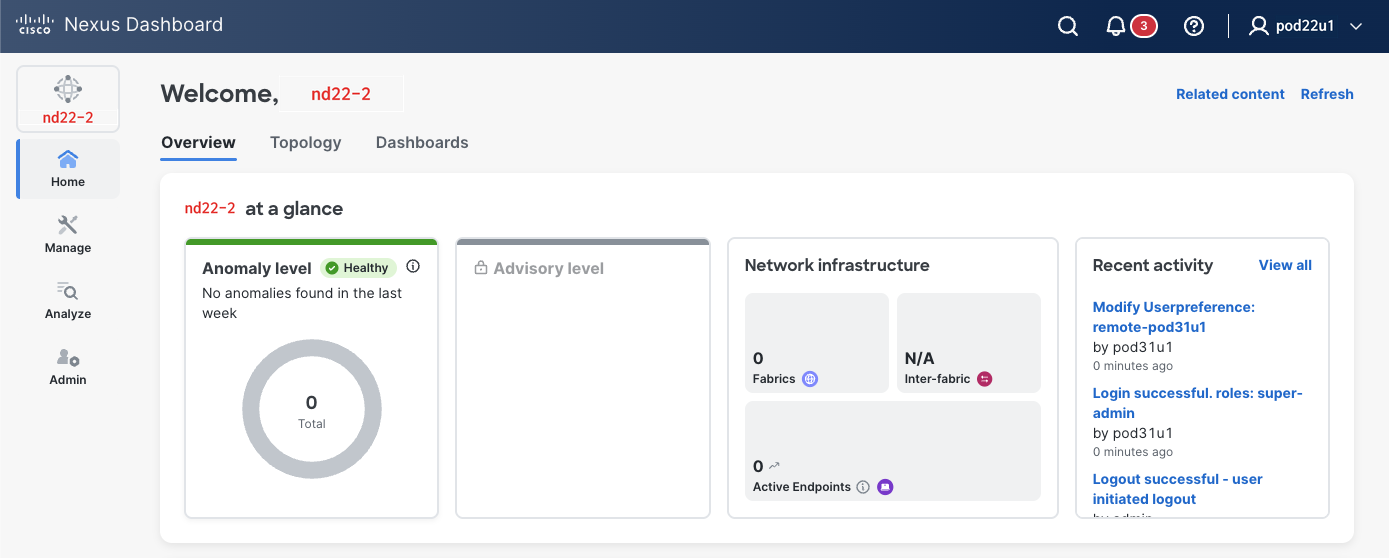

Upon successful login, the user interface should display your username, pod22u1, as shown below.
