Overlay Deployment

Multi-Cluster Fabric Group

Deploy Multi-Site VRFs and Networks

Orchestrate tenant overlay configuration across all sites from centralized MSD fabric.

Multi-Site Deployment

Deploy VRFs and networks from the MSD fabric to all member sites simultaneously. MSD automatically handles VNI consistency, route targets, and inter-site routing configuration across border gateways.

Tenant Extension

Extend tenant VRFs and networks across sites seamlessly, enabling workload mobility and distributed applications. MSD ensures consistent configuration and automated inter-site route distribution.

Simplified Operations

By managing overlay at the MSD level, adding new sites or extending tenants becomes a simple operation that MSD orchestrates across all member fabrics, reducing operational complexity.

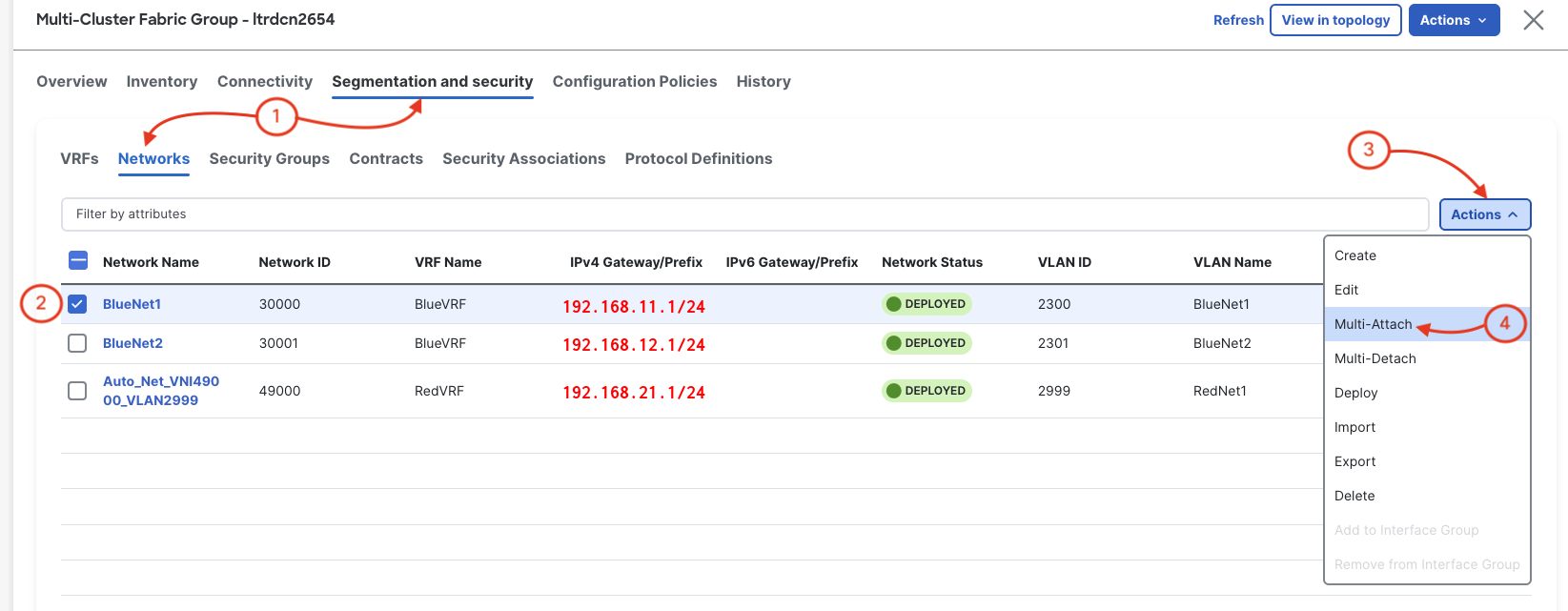

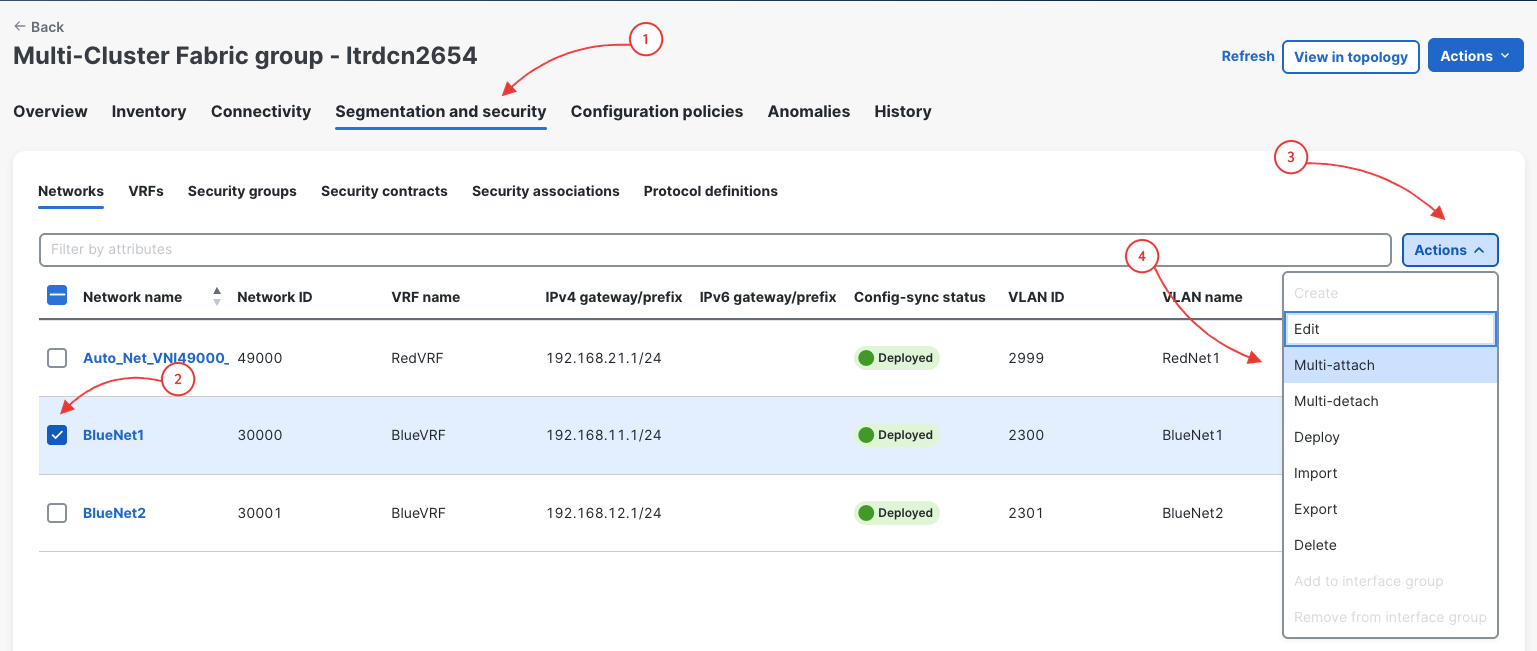

Step 1 - Multi-Attach

In your Multi-Cluster fabric, navigate to Networks to attach your BlueNet1 Network to Site2-L1.

  1. Click Segmentation and Security in the top navigation bar
  2. Click the checkbox for BlueNet1
  3. Click Actions
  4. Click Multi-Attach

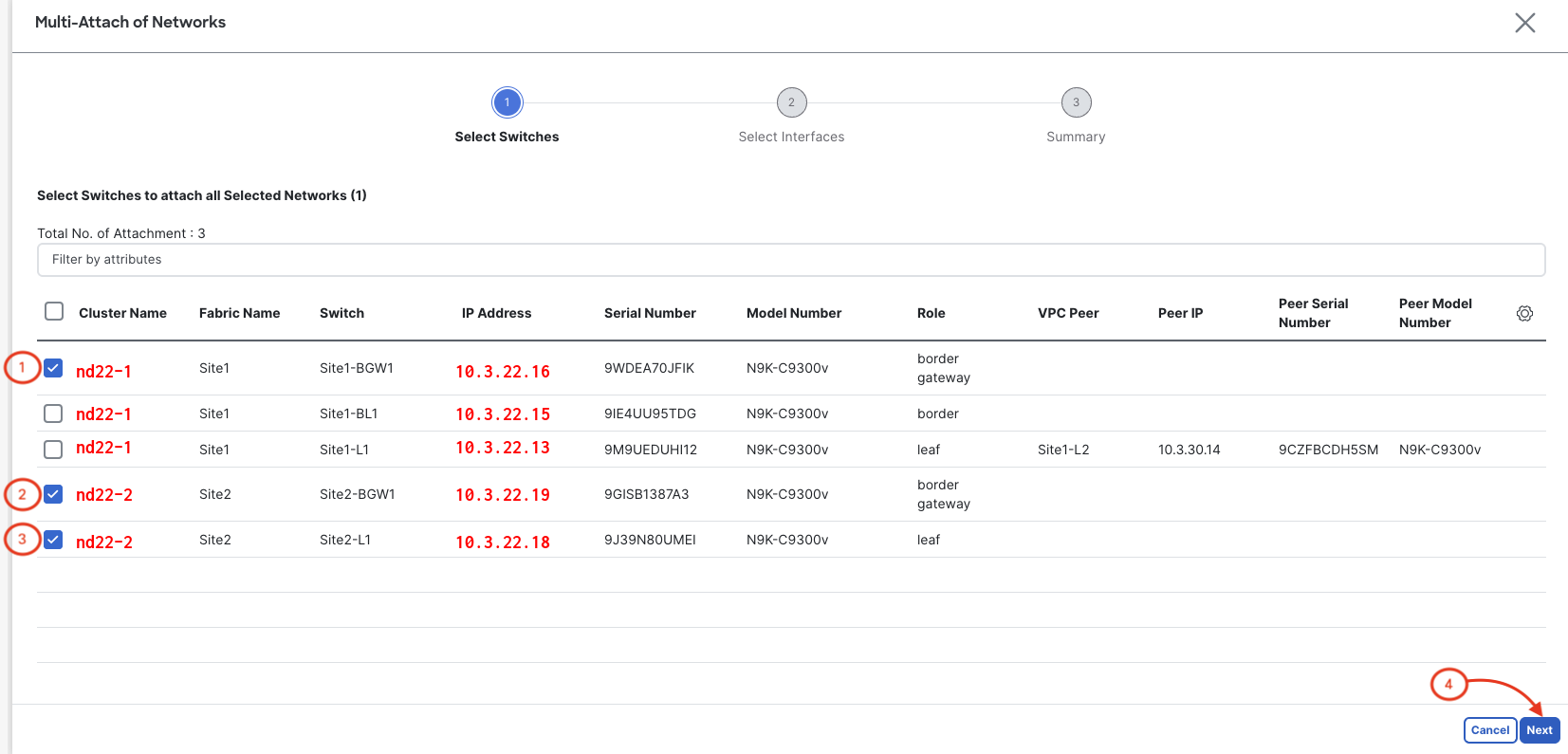

Step 2 - Multi-Attach of Networks: Switches

  1. Locate and click the checkbox for Site1-BGW1
  2. Locate and click the checkbox for Site2-BGW1
  3. Locate and click the checkbox for Site2-L1
  4. Click Next

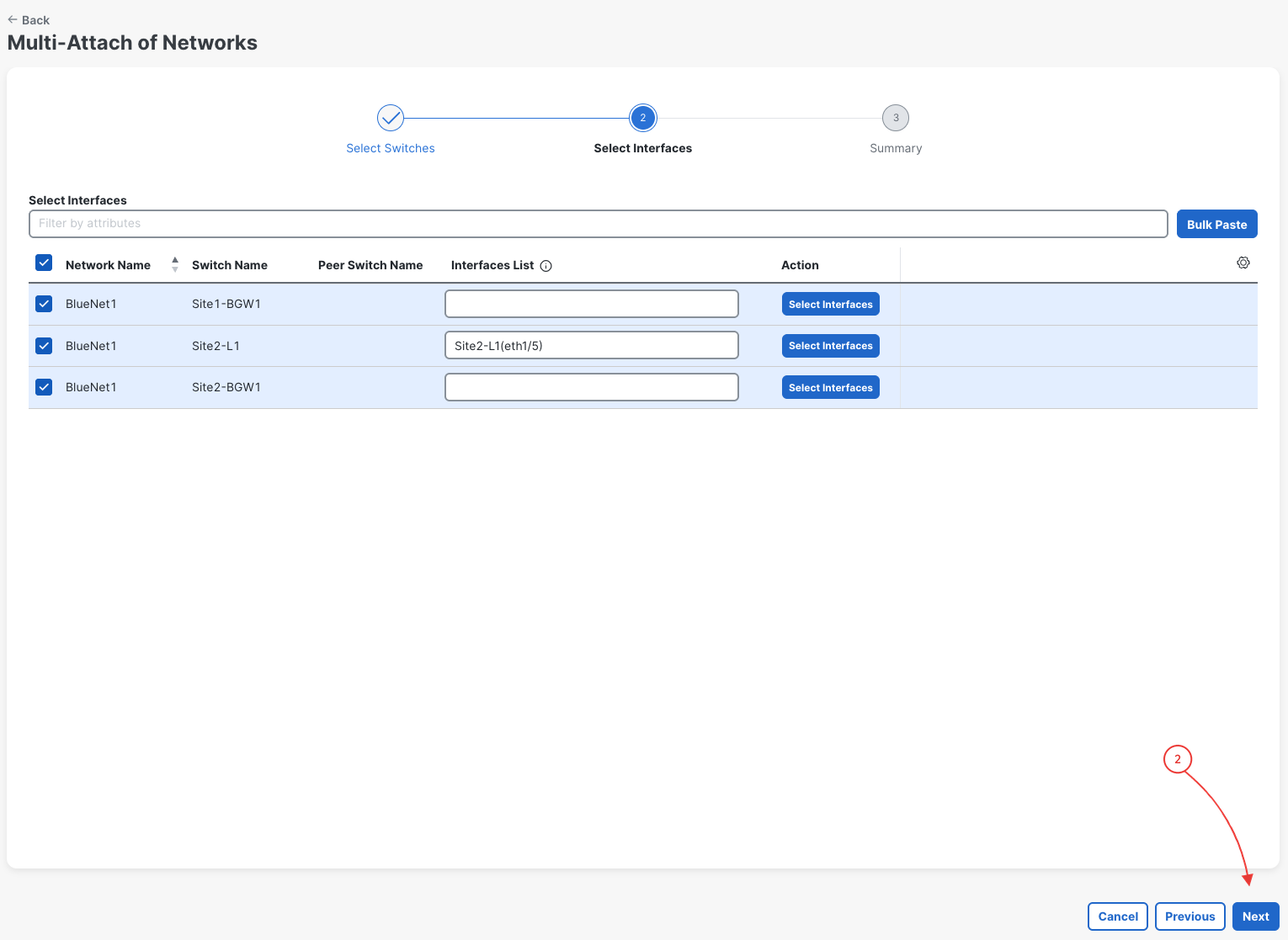

Step 3 - Multi-Attach of Networks: Interfaces

  1. Locate and click the checkbox for BlueNet1 Site2-L1, BlueNet1 Site2-BGW1 and BlueNet1 Site1-BGW1

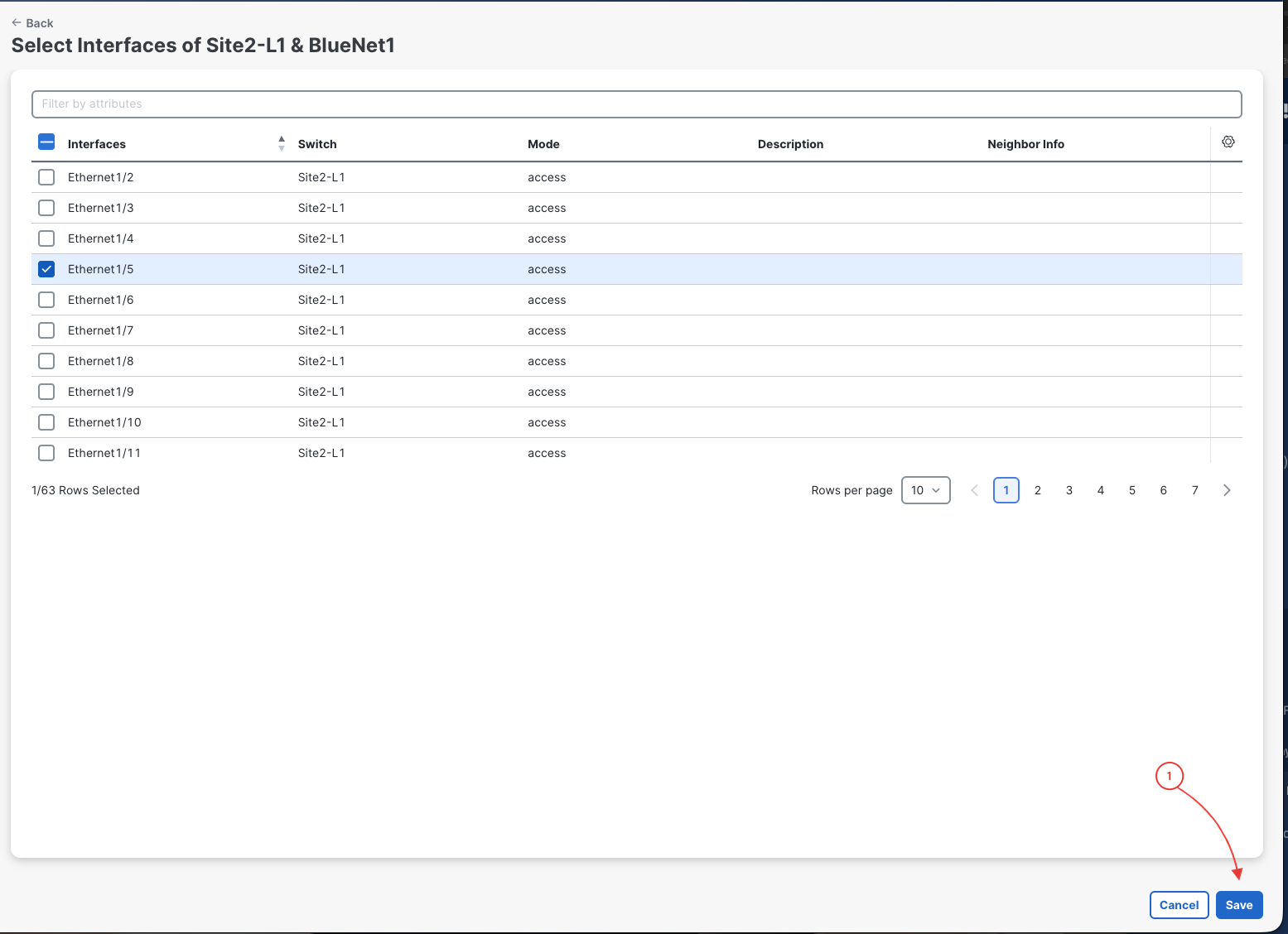

  2. Add to the interfaces list of Site2-L1: Eth1/5
  3. Click Next

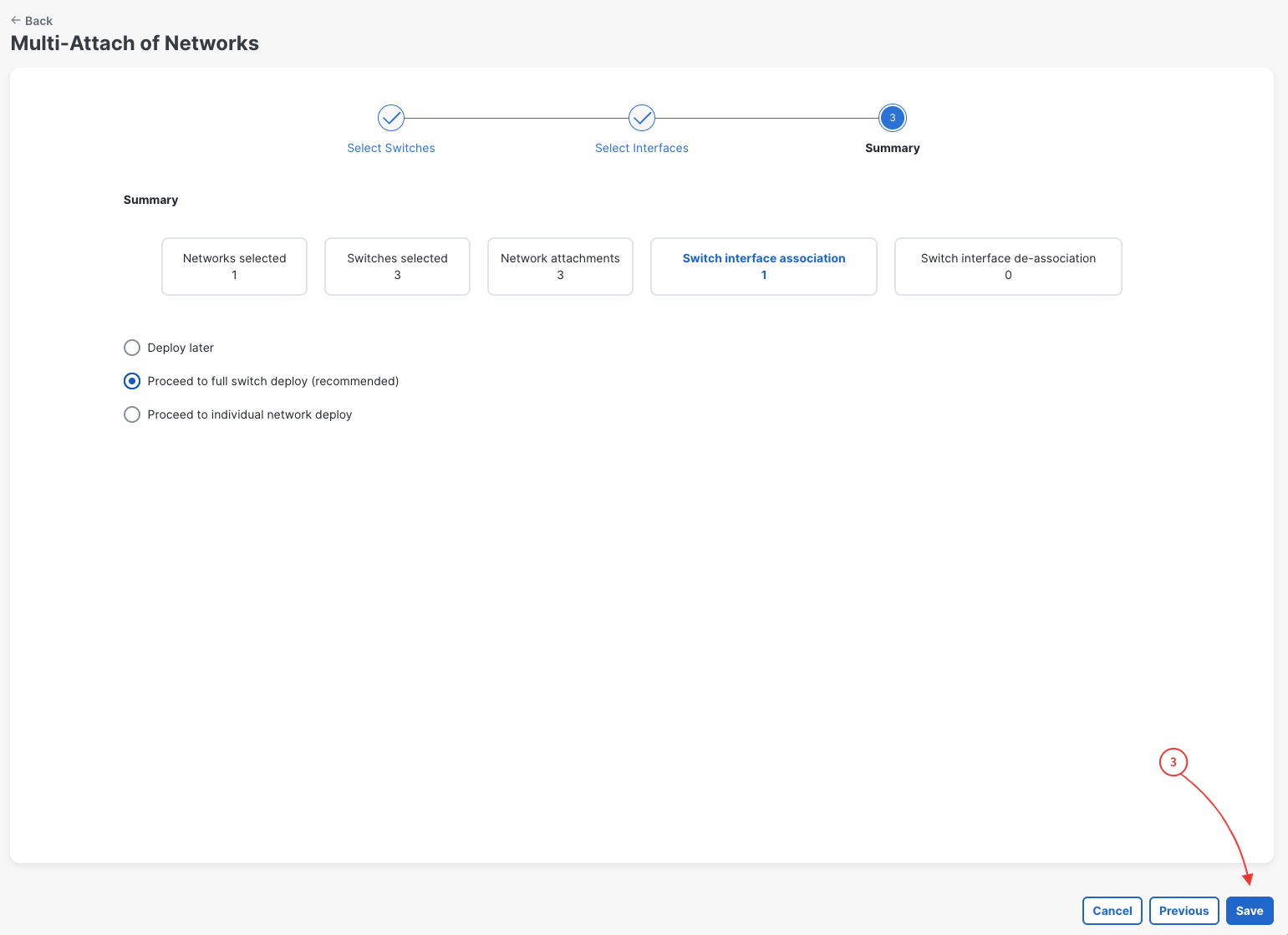

Step 4 - Multi-Attach of Networks: Full Switch Deploy

  1. Click Save

  2. Click Next

  3. Click Save

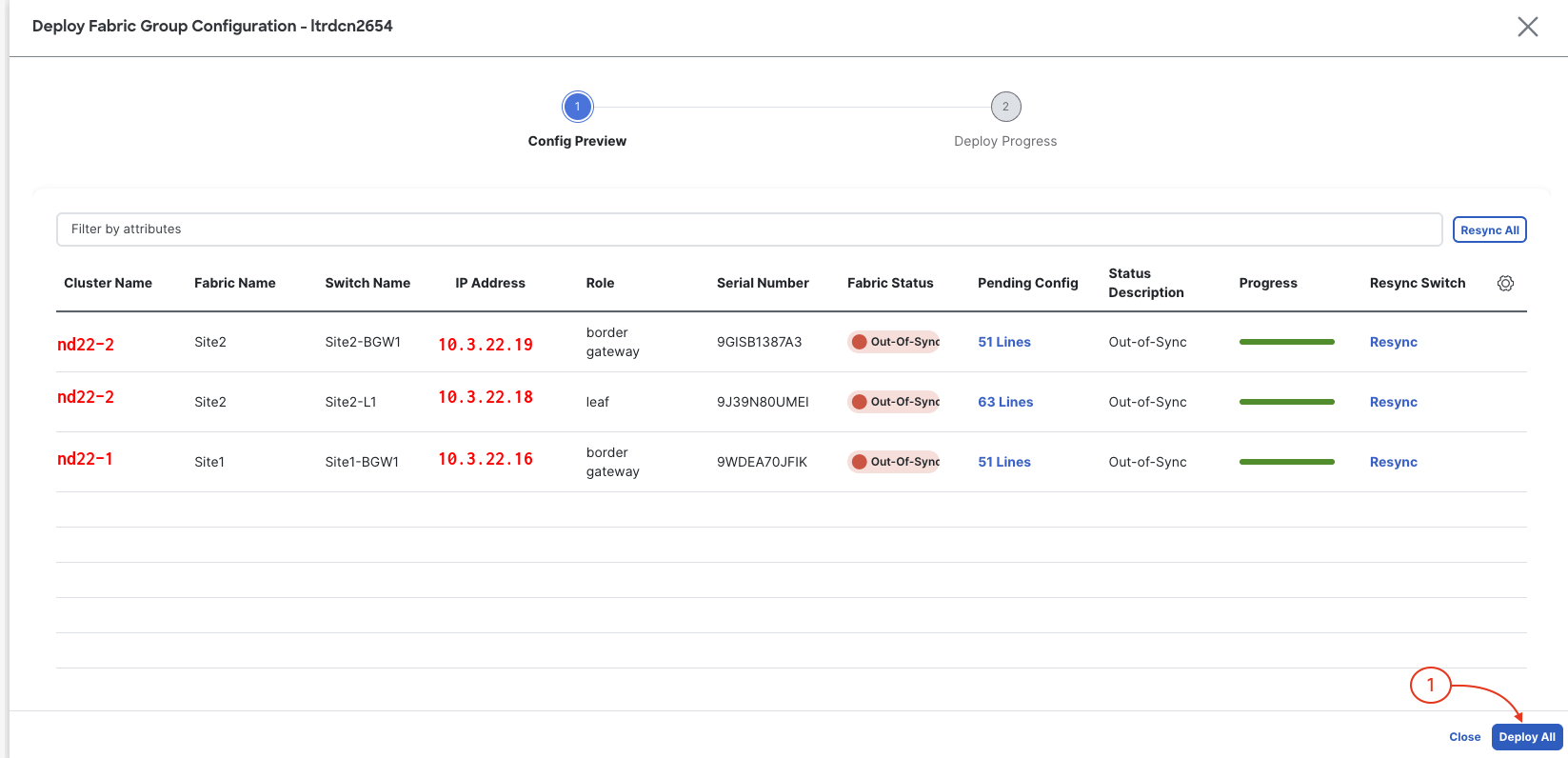

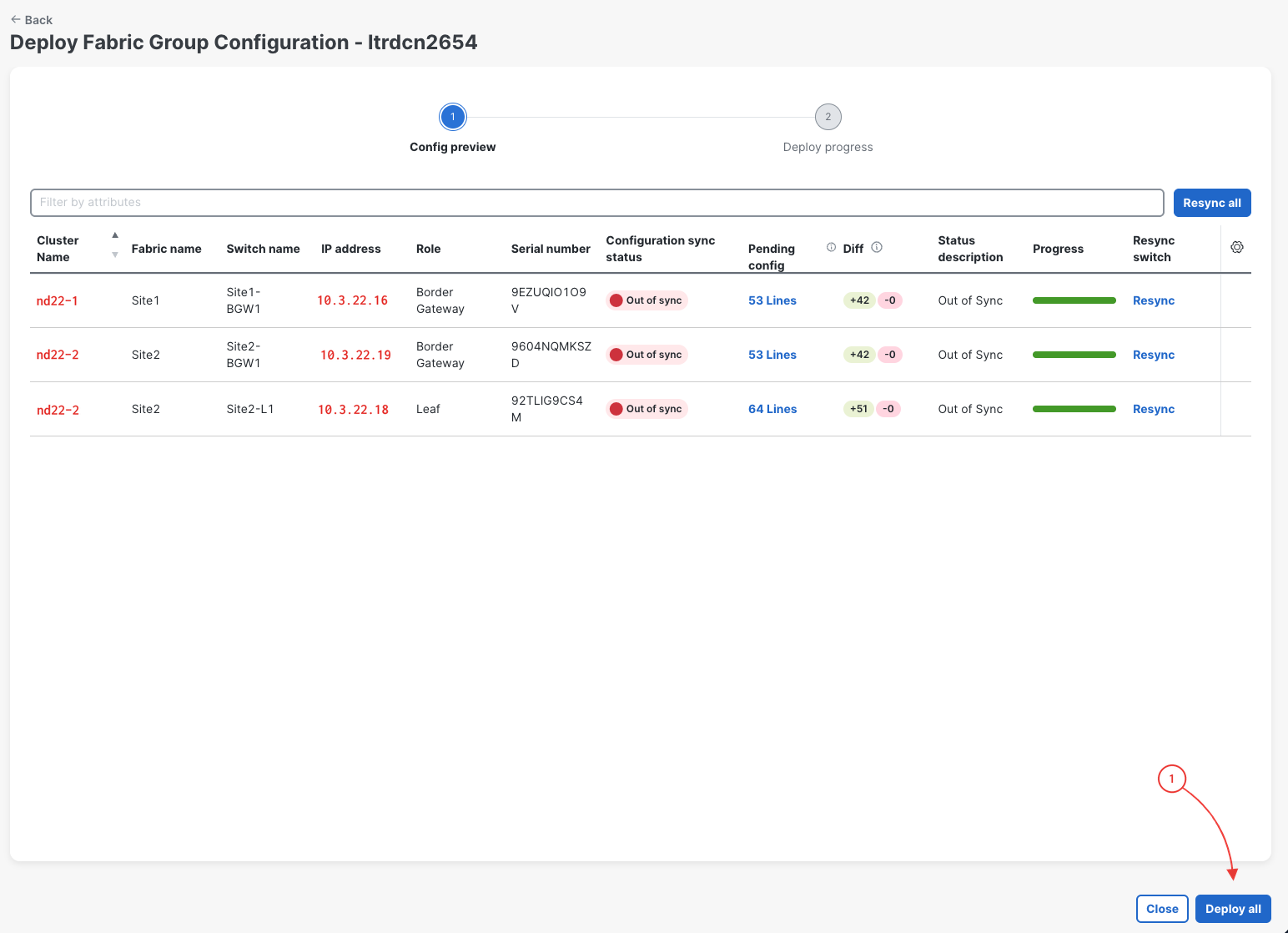

Step 5 - Deploy Configuration

Review the configuration to be deployed, then:

  1. Click Deploy All in the bottom right

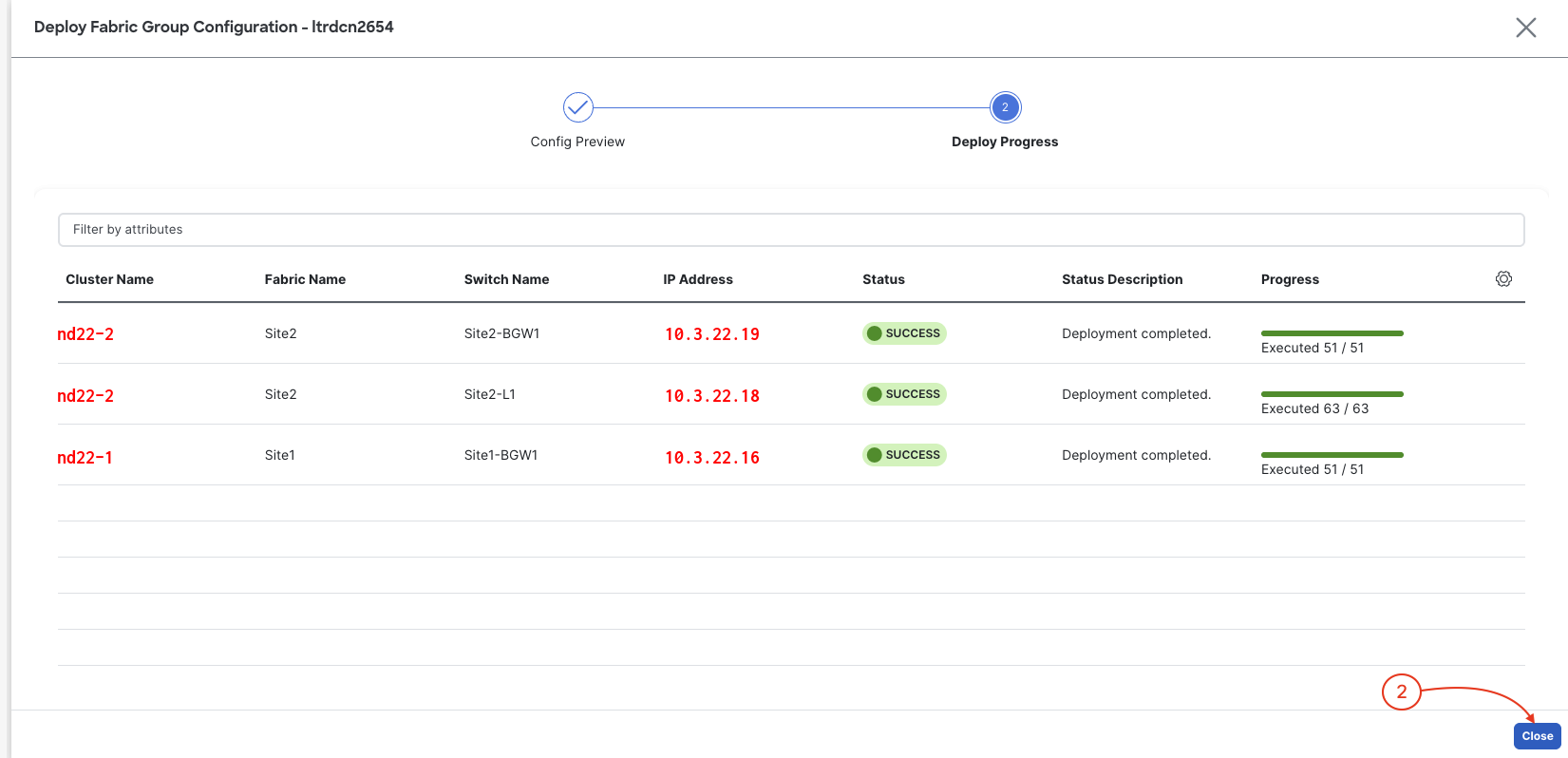

    2. The stage moves to Deploy Progress where the Network Status will show Deployment In-Progress to Deplolyment completed status:

  2. Click Close

    NOTE: During this step, you may observe that ND22-2 - ISN and ND22-2 - Site2 remain in the STARTED stage. Provided that ND22-1 displays Deployment completed, you may proceed to the next step.

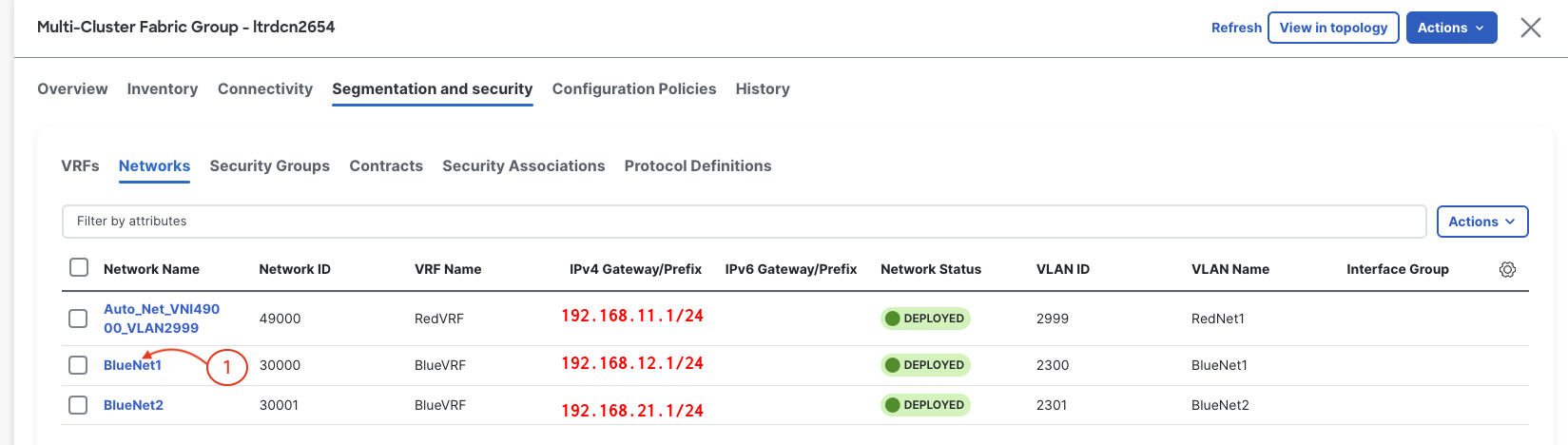

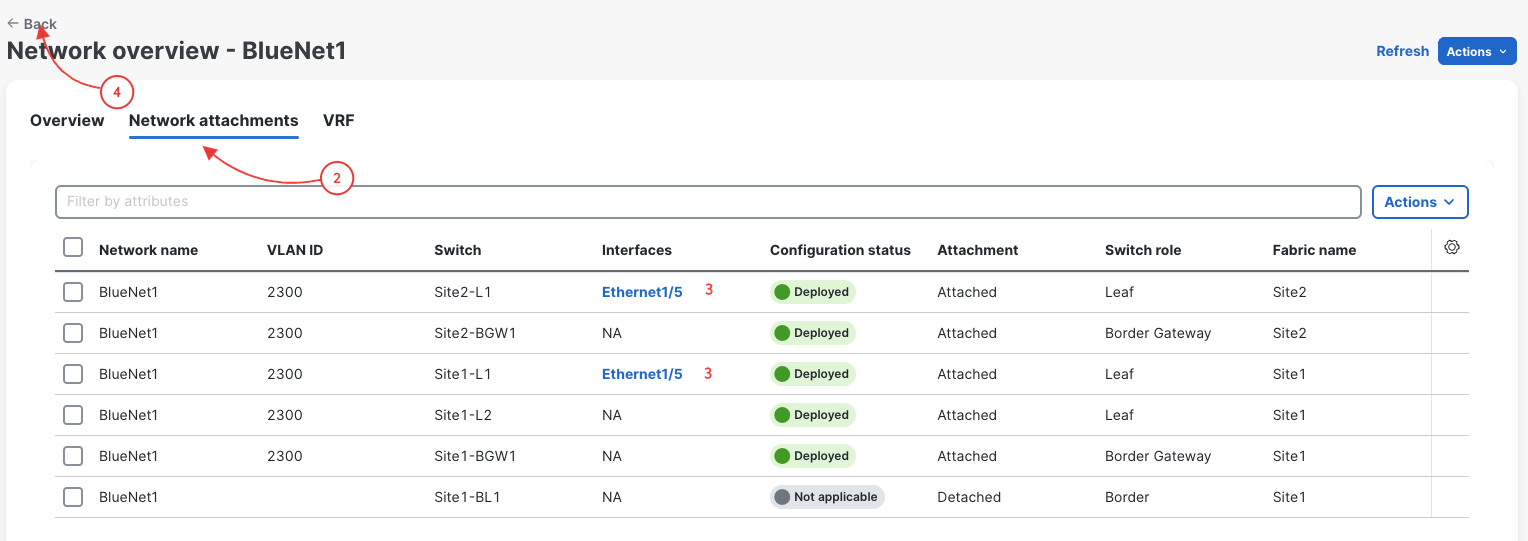

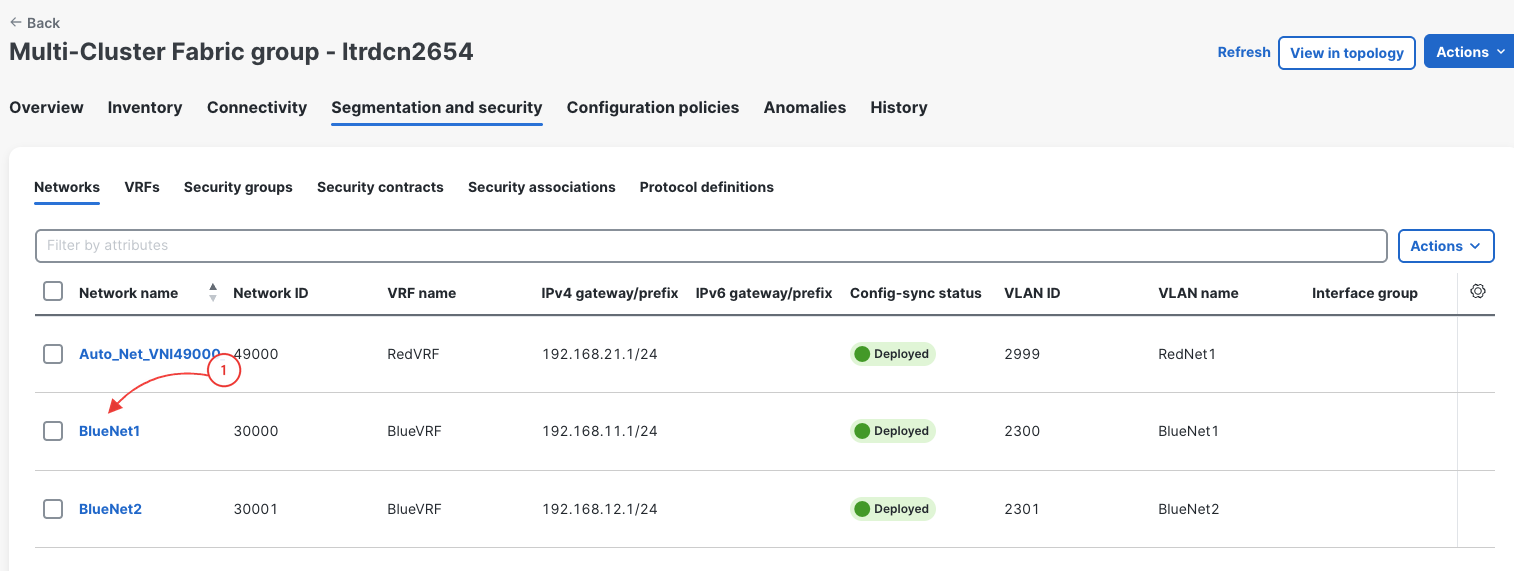

Step 6 - Review BlueNet1 Network Attachments

Review and confirm your BlueNet1 network is attached to all your leaf swithces except for your Site1-BL. This attachment and deployment has extended this VXLAN EVPN L2VNI segements across your Site1 and Site2 fabrics.

  1. Click BlueNet1

  2. Click Network Attachments at top menu
  3. Review and confirm your BlueNet1 network is attached
  4. Click Back Once you finished reviewing network attachments

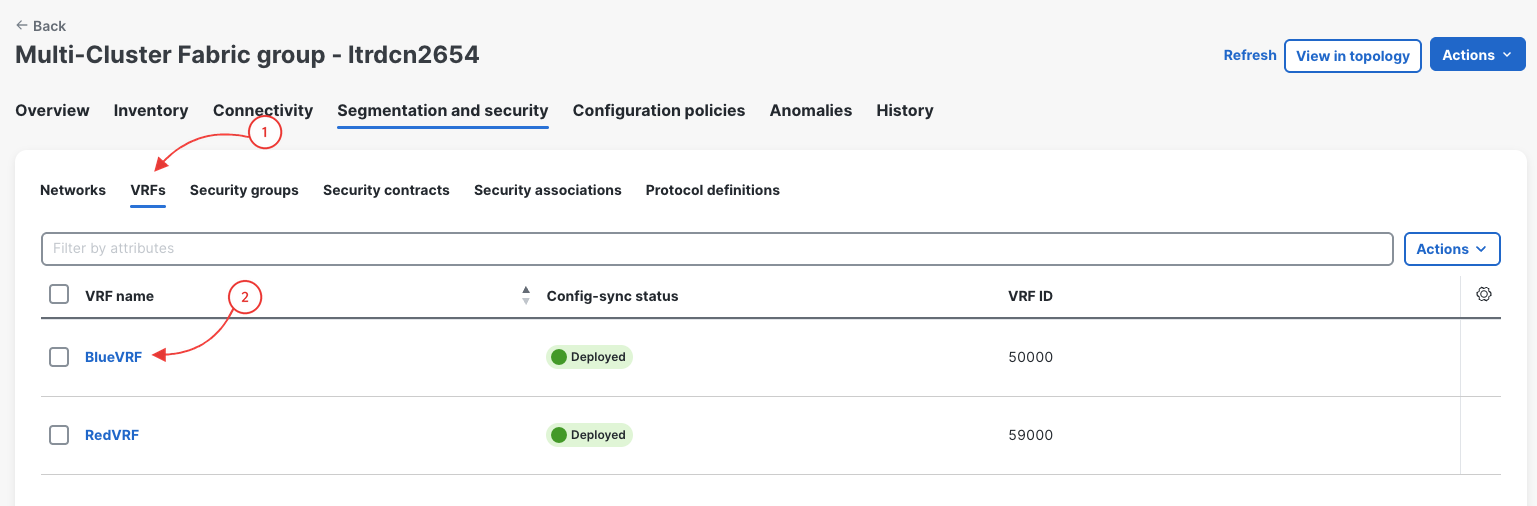

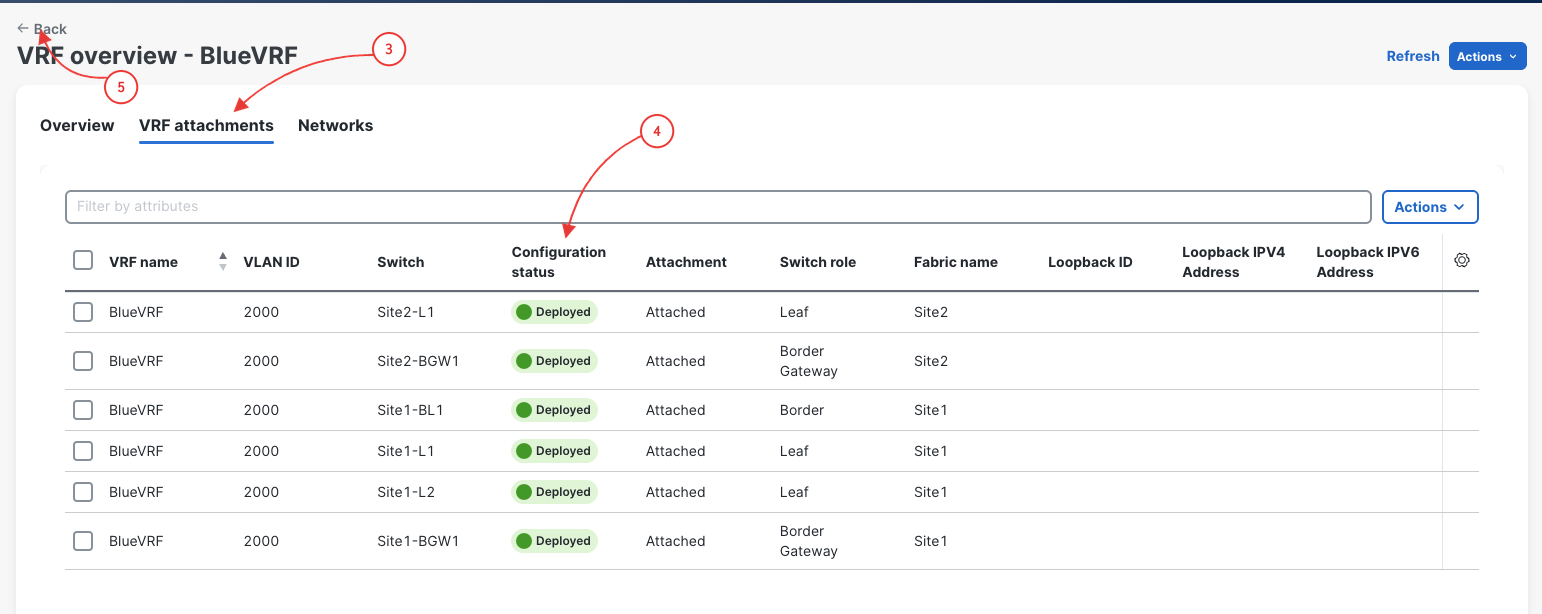

Step 7 - Navigate to VRFs and VRF Attachments

Navigate to VRFs where you can now check your VRF Attachments to confirm that your L3VNI, BlueVRF, originally created in your Site1 fabric, has also been extended.

  1. Click VRFs at the Segmentation and Security Submenu
  2. Click BlueVRF

  3. Click VRF Attachments at top menu
  4. Review and confirm your BlueVRF is deployed
  5. Click X Once you finished reviewing network attachments

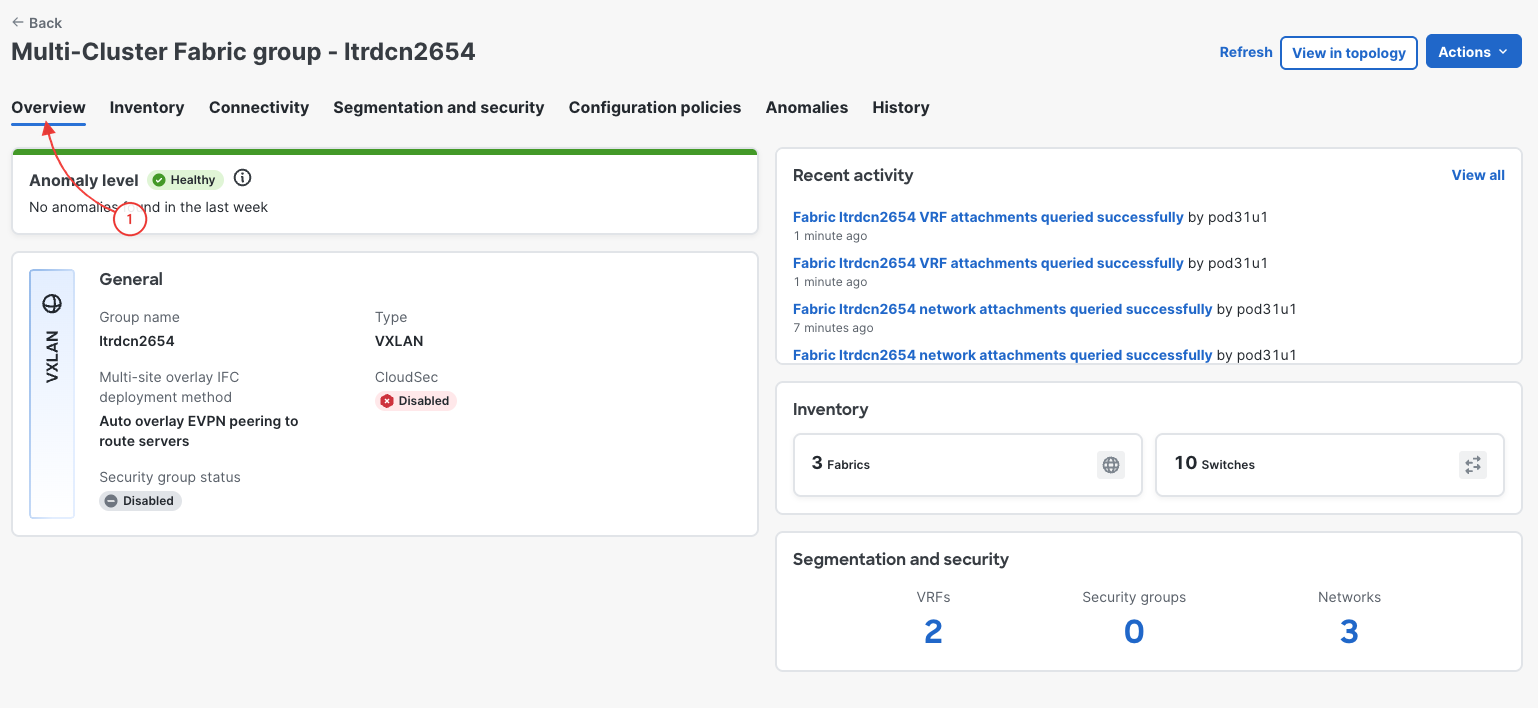

Step 8 - Revisit MSD Overview Dashboard

The MSD fabric Overview dashboard has not changed all that much, but it has updated the Extended Networks/VRFs area of the dashboard, which is infact the most import change. There are now two (2) extended networks and three(3) extended VRFs. You will need to wait 300 seconds for the NVE interface's delay-restore timer for the loopback to come up and display in the dashboard.

  1. Click Overview
